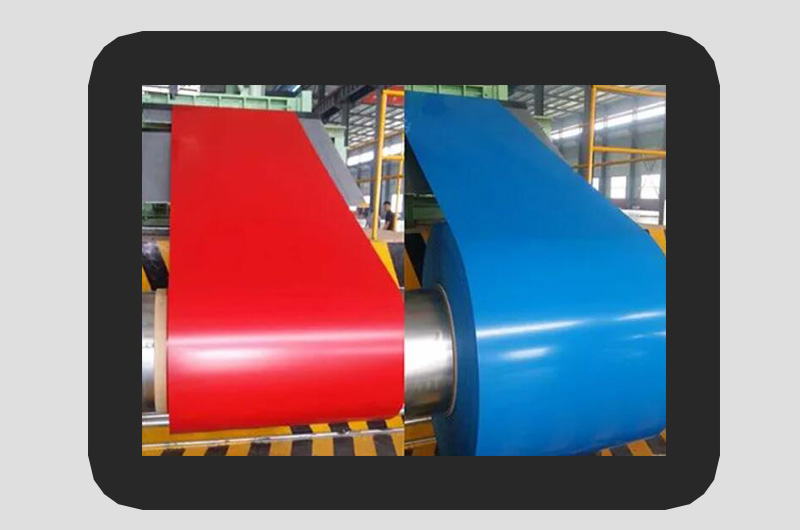

What is color aluminum coil?
Color-coated aluminum coil refers to a product whose surface has been colored spray-coated. It is also called color coated aluminum coil or Color Coated Aluminum Coil.
What is the use of color-coated aluminum coils?
Color-coated aluminum coils are mainly used in construction, decoration and home furnishing fields to achieve beautiful effects.
What is the purpose of coating aluminum coils?
Its colorful coating not only provides decorative properties but also resists corrosion and weathering. Coating treatment directly affects the product quality and service life of color-coated aluminum coils.
The advanced coating process and coating thickness can improve the adhesion, corrosion resistance and weather resistance of the coating, ensuring that the product has long-term performance stability in various environments.
What is the production process of color-coated aluminum coils?
Aluminum coil material selection
Choose a suitable aluminum coil as the base material, and usually choose an aluminum coil with good mechanical properties and surface quality as the raw material for production.
In the production of color-coated aluminum coils, commonly used aluminum coil alloys include 1xxx, 3xxx, 5xxx, and 3xxx series. Different aluminum alloys have different properties and are suitable for different application scenarios. The following are the aluminum alloys used in common color-coated aluminum coils and their characteristics:
1xxx series
Main alloy: 1100
Features: Pure aluminum, with good corrosion resistance, suitable for general needs, but low strength.
3xxx series
Main alloys: 3003, 3004
Features: It has good corrosion resistance and formability, and is suitable for general construction and decoration applications.
5xxx series
Main alloys: 5005, 5052
Features: Good corrosion resistance, moderate strength, widely used in building exterior walls, roofs, car bodies and other fields.
The choice of different alloys depends on the specific requirements of the product, such as corrosion resistance, strength, formability, etc. The surface quality and performance of color-coated aluminum coils will also be affected by the selected alloy. Therefore, when selecting aluminum coil alloys, trade-offs need to be made based on the actual application scenario.
Surface treatment
Aluminum coils undergo chemical treatments such as pickling and alkali washing to remove surface oxides, grease and other contaminants and provide good adhesion for subsequent coatings.
Coating preparation
Prepare the paint required for color painting, which usually includes primer, topcoat and other coating materials. Coatings are chosen based on the requirements of the final product and can come in different colors and properties.
Primer
- Function: Primer is usually used to enhance the adhesion of the coating to the aluminum surface and improve corrosion resistance.
- Features: Strong corrosion resistance and good adhesion to the substrate, helping to improve the stability of the overall coating.
Topcoat
- Function: The topcoat determines the color and appearance of the final product while providing additional weather resistance and protection.
- Features: It has rich color choices, can provide good aesthetic effects, and has UV resistance, weather resistance and other properties.
Other coating materials
- Protective coating: used to increase the corrosion resistance of the coating and extend the service life of the product.
- Special effect coating: such as metallic texture, texture, etc., used to create special appearance effects.
- Functional coatings: such as flame retardant coatings, antibacterial coatings, etc., which are selected and used according to the special requirements of the product.
Primer application
A layer of primer is applied to the surface of the aluminum coil. The function of the primer is to enhance the adhesion of the coating and improve the weather resistance and corrosion resistance of the coating.
bake
The aluminum coil coated with primer is fed into the baking oven to solidify and dry the primer to ensure the stability of the coating.
topcoat application
A layer of topcoat is applied to the surface of the aluminum coil after the primer is baked. The topcoat is usually the key to determining the final color and appearance.
bake again
The aluminum coil coated with topcoat is fed into the baking oven again to ensure curing of the topcoat and overall coating quality.
Cooling and cutting
After cooling, the coated aluminum coils are cut according to the customer's requirements and product specifications.
Packaging and leaving the factory
Finally, the cut color-coated aluminum coils are packaged and ready to be shipped to the customer's site for use.
This is a general color-coated aluminum coil production process. The specific production process may have some changes, depending on the manufacturer's equipment and technical level, as well as customer needs.
The coating process is a key step in the production of color aluminum coil, which directly affects the final coating quality and product durability. Therefore, the coating process is very strict.
