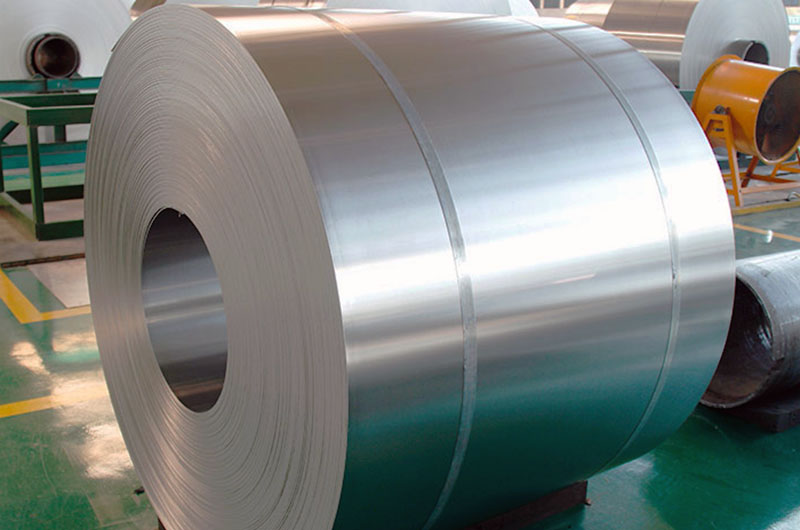

1060 Aluminum Coil

1060 pure aluminum coil, the national standard aluminum content is more than 99.60%. It belongs to 1XXX series aluminum coil products. Because of its high proportion of aluminum content, it is widely called a pure aluminum coil, pure aluminum aluminum coil, and so on in the industry.

1060 aluminum coil has excellent electrical conductivity, thermal conductivity, and plasticity of pure aluminum, suitable for polymer welding, and the product has good elongation and tensile strength.

1060 aluminum coil has strong corrosion resistance, high formability, easy to withstand various pressure processing and stretching, bending, strong weldability, gas welding, hydrogen atom welding, resistance welding, arc welding, and contact spot welding.

• Temper: H12/H14/H16/H18/O
• Standard: ASTM B209, EN573, EN485
• Surface Treatment: Mill Finish, Bright Finish, Anodized, Color Coated

The shear strength of the 1060 aluminum coil is similar to that of the 1050 aluminum coil, but the fatigue strength is better than 1050, and the hardness is also better than 1050 aluminum coil.

The production process of 1060 aluminum alloy is relatively simple, the technology is relatively mature, and the price is much cheaper than other high-end aluminum alloys.

The 1060 aluminum coils we produce can be oxidized on one or both sides, coated on one or both sides or polished on one or both sides.

1060 Aluminum Coil Specifications

Features of 1060 aluminum coil

• 1.1060 aluminum coil is known for its excellent welding properties and formability for cold or hot processing using commercial techniques.
• 2. It cannot be hardened by heat treatment, but can only be hardened by cold working.
• 3. Conditions H12, H14, H16 and H18 are determined by the amount of cold working of the alloy.
• 4. 1060 aluminum coil has good corrosion resistance, but poor cutting processability. The cutting processability can be improved in a harder (cold working) state, such as H16 and H18.
• 5. Highly reflective, it can effectively reflect radiant energy, visible light, radiant heat and radio waves. The 1060 aluminum coils that have been anodized and dark anodized can be either reflective or light-absorbing. Therefore, it can be well used in curtain wall structures.
• 6. Excellent electrical conductivity: On the basis of the same weight, the electrical conductivity of aluminum is almost twice that of copper. Therefore, 1060 aluminum coils with the highest Al content have excellent electrical conductivity properties of pure aluminum and are often used in soft connection parts of power batteries.

Typical 1060 Aluminum Coil

1060 aluminum coil belongs to the common aluminum plate alloy series in the casting-rolling-cold rolling process. We can provide you with H24 state, H14 state, H16 state, H22 state, O state, and H18 state without annealing.

• 1060 o Aluminum Coil
• 1060 H12 Aluminum Coil
• 1060 H14 Aluminum Coil
• 1060 H16 Aluminum Coil
• 1060 H18 Aluminum Coil

1060 o Aluminum Coil

• o Softest state, fully annealed.
• 1060 o has low strength and high ductility.
• 1060 o Excellent formability for deep drawing and bending applications.
• 1060 o Aluminum Coil is typically used in applications requiring high formability such as cookware, reflectors, and signage.

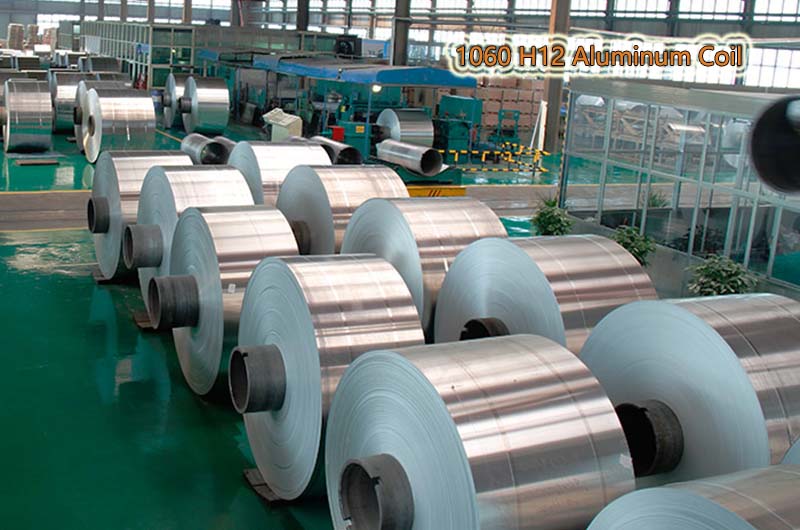

1060 H12 Aluminum Coil

• H12 partially annealed and strain hardened.
• 1060 H12 has medium strength and higher hardness compared to the O state.
• 1060 H12 has good formability and very low susceptibility to cracking.
• 1060 H12 Aluminum Coil is commonly used in general sheet metal fabrication, packaging, and construction applications.

1060 H14 Aluminum Coil

• H14 strain hardening temper.
• 1060 H14 has higher strength and hardness than H12 temper.
• 1060 H14 has good formability and excellent corrosion resistance.
• 1060 H14 Aluminum Coil is widely used in heat exchangers, evaporator coils, and other general applications.

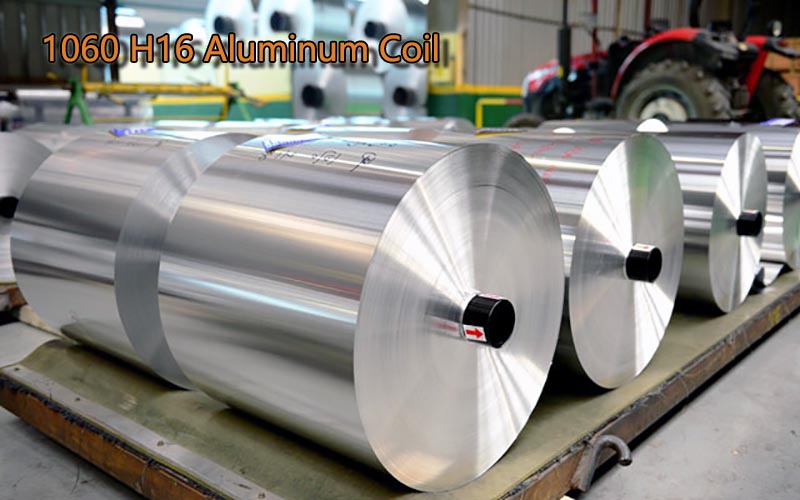

1060 H16 Aluminum Coil

• H16 has higher strength and hardness than H14 state.
• 1060 H16 has enhanced mechanical properties and better resistance to deformation.
• 1060 H16 Aluminum Coil is suitable for applications requiring greater strength and stability, such as roofing shingles and transportation equipment.

1060 H18 Aluminum Coil

• H18 has the highest strength and hardness among these states.
• 1060 H18 is further strain hardened compared to the H16 temper.
• 1060 H18 Aluminum Coil is ideal for applications requiring maximum strength, such as transformer windings and electrical conductors.

1060 Aluminum Coil Surface Treatment

• 1060 Anodized Aluminum Coil
• 1060 Coated Aluminum Coil
• 1060 Mirror Aluminum Coil
• 1060 Embossed Aluminum Coil

•
  1060 Anodized Aluminum Coil

  1060 Anodized Aluminum Coil is suitable for corrosion resistant and aesthetically pleasing architectural elements, trim panels, nameplates, and signs.

•
  1060 Coated Aluminum Coil

  1060 Coated Aluminum Coil is ideal for outdoor applications where durability, weather resistance, and color customization are required, such as roofing, exterior walls, and exterior cladding.

•
  1060 Mirror Aluminum Coil

  1060 Mirror Aluminum Coil is suitable for decorative applications, architectural finishes, lighting fixtures, and reflective surfaces where a mirror effect is desired for aesthetic purposes.

•
  1060 Embossed Aluminum Coil

  1060 Embossed Aluminum Coil is ideal for applications requiring slip resistance and texture such as floors, stairs, vehicle floors, decorative panels, and signage.

1060 Aluminum Coil Applications

1060 aluminum coil has the excellent electrical conductivity, thermal conductivity, plasticity, elongation and other characteristics of pure aluminum. It is widely used in power batteries, aluminum-plastic panels, lamps, capacitor casings, road signs, building walls, aluminum gaskets, battery busbars, aluminum Composite panels, lamp housings and holders, facades and other manufacturing industries. Haomei Aluminum 1060 aluminum coil has mature technology, good quality and low price.

• 1.2mm 1060 Aluminum Coil: thermal insulation aluminum coil, aluminum veneer curtain wall
• 0.17mm 1060 Aluminum Coil: ceiling material, for decoration
• 0.5mm 1060 Aluminum Coil: pipe insulation, stamping lamps

1060 is widely used in products that do not require high strength, such as chemical instruments, thin plate processing parts, deep drawing or spinning concave vessels, welding parts, heat exchangers, clock surfaces and disks, nameplates, kitchen utensils, decorations, reflective appliances, power battery soft connection, aluminum-plastic panels, lamps, signs, capacitor shells, building exterior walls, aluminum gaskets, road signs, etc.

•
  1060 Thermal Insulation Aluminum Coil

  Thermal insulation aluminum coil is a material commonly used in daily life. It not only has a good thermal insulation effect, but also has good durability, is not easy to be damaged, and has a long service life. However, at present, most thermal insulation aluminum coils in the market are 1060 aluminum coils, and the common thickness is 0.7mm.

•
  1060 Aluminum Coil Strip For the Transformer

  1060 aluminum coil also has high plasticity, strong corrosion resistance, good thermal conductivity, and electrical conductivity, and can be better used in transformers.

•
  1060 O Aluminum Coil For Battery Flexible Connection

  The raw material for the processing and production of the battery soft connection can use 1060 o aluminum coils. The advantages of 1060-o aluminum coils for the battery soft connection are firm welding, good electrical conductivity, and fast heat dissipation.

•
  Bottle Cap Material 1060 Aluminum Coil

  The aluminum bottle cap is made of 1060 alloy, and the material specifications generally have a thickness of 0.20-0.23mm, an allowable tolerance of ±0.01%, and a width of 449-796mm. In order to ensure the convenience of printing after the bottle cap is formed, the surface of the bottle cap material is required to be flat, without rolling marks, scratches, and stains.

•
  1060 Aluminum Coil For Power Enclosure

  The aluminum power supply casing is processed by a 1060 aluminum coil, which has high plasticity, corrosion resistance, electrical conductivity and thermal conductivity, good elongation and tensile strength, and can meet conventional processing requirements (stamping, stretching) forming high sex.

•
  1060 Aluminum Coil For Lighting

  1060 aluminum coil belongs to the pure aluminum series, with high electrical and thermal conductivity, good elongation, and tensile strength, which can meet the conventional processing requirements (stamping, stretching) and high formability. 1060 aluminum tape for lighting, stable performance, environmental protection and energy saving, low cost.

•
  1060 Aluminum Coil For Signs

  1060 aluminum coil can meet the requirements of signage manufacturing and has high corrosion resistance. The processing process of the 1060 aluminum coil is relatively simple and mature. The production of a 1060 aluminum coil is less difficult. In the same applicable field, choosing a 1060 aluminum coil can save a lot of cost.

•
  1060 Aluminum Coil For Automotive Heat Shield

  The 1060 aluminum coil can effectively isolate heat transfer, reduce the temperature around the engine, chassis, and cab, protect the engine and electronic components near the chassis from normal operation, and improve driving comfort.

•
  1060 h24 Aluminum Coil For Radiator

  Radiators generally use materials with high thermal conductivity. 106 h24 aluminum coil is a commonly used one. It has good thermal conductivity, low density, and is not easy to oxidize. It can meet the needs of heat dissipation, and is light in weight, easy to process, and affordable.

1060 Aluminum Coil Chemical Composition

1060 Aluminum Coil Mechanical Properties

Physical Properties for Alloy 1060
