5083 aluminum coil is suitable for low temperature environments, and 5083 has strong resistance to corrosion from seawater and industrial chemical environments. Its greater resistance to corrosion, particularly from salt water, makes it an excellent material for marine and process applications.
5083 aluminum is a popular alloy known for its excellent corrosion resistance and high strength. 5083 aluminum coil is widely used in various applications.
5083 Aluminum Coil Data Sheet
Mechanical Properties (Typical values for 5083-O temper):
- Ultimate Tensile Strength (UTS): 186-276 MPa
- Yield Strength: 76-179 MPa
- Elongation: 12% - 20%
- Hardness (Brinnell): 46
5083 Aluminum Coil Typical Temper
- 5083-O: Annealed, soft and processable
- 5083-H32: Strain hardening and stabilizing
- 5083-H111: Strain hardened and partially annealed
- 5083-H116: Strain hardening and stress relief
5083 Aluminum Coil Physical Properties
- Density: 2.66 g/cm3
- Melting range: 570-640°C (1058-1184°F)
5083 Aluminum Coil Corrosion Resistance
- Excellent resistance to seawater and marine environments
- Good resistance to industrial chemicals
Weldability
Excellent weldability using a variety of methods including TIG, MIG and resistance welding
Formability
Medium formability, suitable for bending and forming
5083 Aluminum Alloy Applications
Marine and offshore components (e.g. hulls, shipbuilding)
- 5083 O H112 Marine Grade Aluminum Round Bars
- 5083 O H112 Marine Aluminum Square Bar
- 5083 O H111 H116 H321 Marine Grade Aluminum Plate
- 5083 5383 Marine Grade Aluminum Hexagon Bar
Aircraft manufacturing (e.g. aircraft parts)
- 5083 Aerospace Aluminum Sheet Plate
- 5083 O/H111/H32 Aerospace Grade Aluminum Bar
- 5083 Aerospace Grade Aluminum Tube
Transportation (e.g. tanker truck, trailer)
- 5083 H131 H136 H116 H321 Aluminum Armor Plate
- 5083 O/H111/H32 Aluminum Sheet for Auto Body

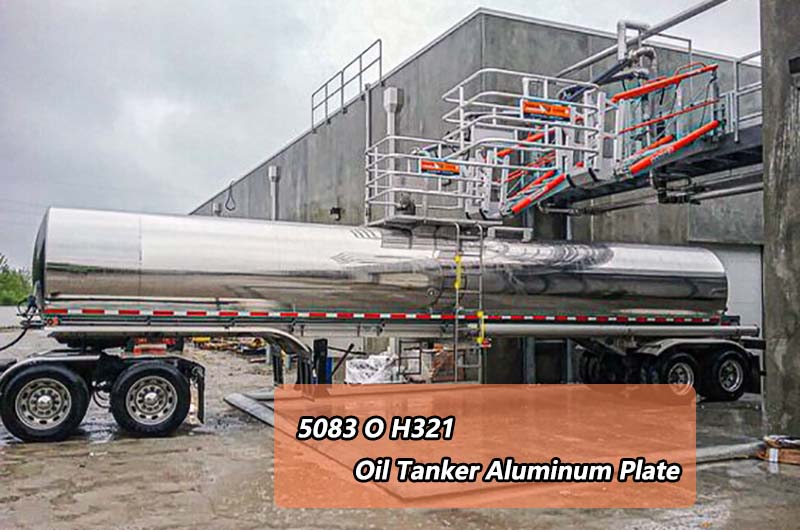

- 5083 O H321 Oil Tanker Aluminum Plate
- 5083 Forged Aluminum Alloy Armor Sheet
- 5083 Aluminum Alloy Armor, Extruded, Weldable
- 5083 Aluminum Pipe
Industrial applications requiring corrosion resistance and strength
5083 Aluminum Coil Chemical Composition
| Element | Chemical Composition (Percentage) |
|---|---|
| Aluminum (Al) | 95.6% |
| Magnesium (Mg) | 4.0-4.9% |
| Manganese (Mn) | 0.3-1.0% |
| Chromium (Cr) | 0.05-0.25% |
| Iron (Fe) | 0.0-0.4% |
| Copper (Cu) | 0.1% max |
| Zinc (Zn) | 0.25% max |
| Silicon (Si) | 0.4% max |
| Titanium (Ti) | 0.15% max |
| Other Elements | 0.05% max each, 0.15% total max |
Please note that mechanical properties may vary depending on temper condition and specific manufacturing processes. The data provided here is for general reference only, for precise material specifications you should consult your aluminum supplier or refer to the specific data sheet provided by the manufacturer for the exact alloy and temper condition you intend to use.
How to Choose Aluminum Coil?
Below is a comparison of the aluminum coil alloys listed above, including 5053, 3003, 5052, 3104, 3105, 5052, 5754 and 5005, based on some key properties and characteristics:
5053 aluminum coil
- 5053 is not as common as some other alloys.
- It has medium strength and good corrosion resistance.
- Typically used in marine and saltwater applications.
3003 aluminum coil
- 3003 is known for its excellent formability.
- Has medium strength and good corrosion resistance.
- Widely used in general sheet metal processing, HVAC and food containers.
5052 aluminum coil
- 5052 is highly regarded for its excellent corrosion resistance.
- It has good strength and formability.
- For use in marine, automotive and construction applications.
3104 aluminum coil
- 3104 has moderate strength and good formability.
- It is commonly used in beverage can lids and automotive parts.
3105 aluminum coil
- 3105 is similar to 3003 in formability and corrosion resistance.
- Commonly used in general sheet metal processing and painted products.
5754 aluminum coil
- 5754 has excellent corrosion resistance and good strength.
- It is used in marine applications, transportation and structural components.
5005 aluminum coil
- 5005 has good corrosion resistance and formability.
- Commonly used in construction and decorative applications.
Guide to choosing aluminum coils:
- If you require high corrosion resistance, consider 5052, 5053 or 5754.
- For excellent formability, 3003 and 3105 are suitable choices.
- If you need a balance of corrosion resistance and strength, 5052 and 5754 are good choices.
- For general applications with moderate requirements, consider 5005, 3104 and 3105.
The choice of alloy depends on your specific project needs, and you may need to consult with a materials engineer or supplier to determine which alloy is best for your application.

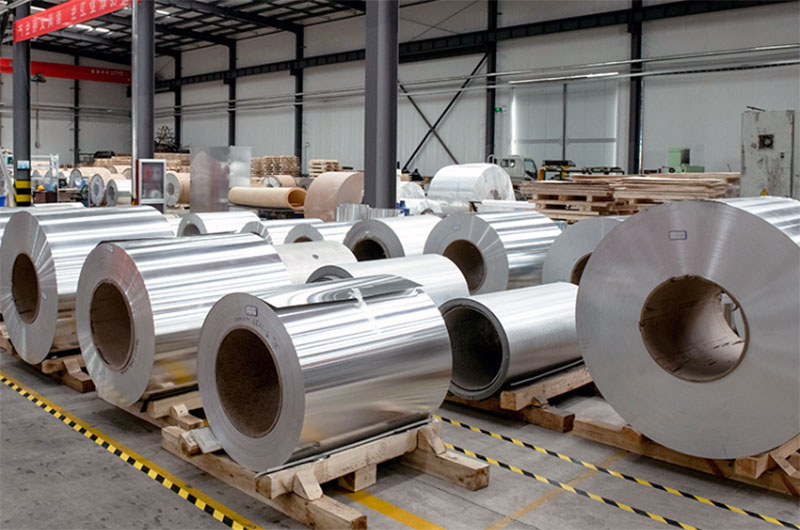

5083 Aluminum Coil Stock
| Alloy State | Specifications (Thickness/Width/Length) | Available Quantity (Metric Tons) |
|---|---|---|
| 5083 H116 Aluminum Coil | 0.6/300/C | 2.893 |
| 5083 H116 Aluminum Coil | 0.8/1190/C | 5.432 |
| 5083 H116 Aluminum Coil | 1.2/354/C | 3.233 |
| 5083 H116 Aluminum Coil | 1.2/371/C (Range) | 2.946 to 3.283 |
| 5083 H116 Aluminum Coil | 1.4/1590/C | 7.654 |
| 5083 H32 Aluminum Coil | 0.6/300/C | 3.245 |
| 5083 H32 Aluminum Coil | 0.8/1190/C | 6.789 |
| 5083 H32 Aluminum Coil | 1.2/354/C | 2.835 |
| 5083 H32 Aluminum Coil | 1.2/371/C (Range) | 2.499 to 3.056 |
| 5083 H32 Aluminum Coil | 1.4/1590/C | 7.172 |
| 5083 O Aluminum Coil | 0.6/300/C | 1.233 |
| 5083 O Aluminum Coil | 0.8/1190/C | 4.632 |
| 5083 O Aluminum Coil | 0.8/1190/C | 4.569 |
| 5083 O Aluminum Coil | 1.2/354/C | 1.594 |
| 5083 O Aluminum Coil | 1.2/371/C (Range) | 1.119 to 1.366 |
| 5083 O Aluminum Coil | 1.4/1590/C | 5.911 |
| 5083 O Aluminum Coil | 1.46/1160/C | 4.407 |
| 5083 O Aluminum Coil | 1.46/1160/C | 4.472 |
| 5083 O Aluminum Coil | 1.93/1272/C (Range) | 2.994 to 4.008 |
