5754 aluminum is a commonly used aluminum alloy known for its excellent combination of properties, including high strength, good corrosion resistance and weldability.
5754 aluminum coil belongs to the Al-Mg series alloy and has medium to high strength. Because of its good corrosion resistance, it is called rust-proof aluminum. 5754 aluminum alloy sheets in different heat treatment states are the main materials used in the automobile manufacturing industry (car doors, molds, seals) and canning industry.
Key Characteristics and Properties of 5754 Aluminum Coil
- Corrosion Resistance: 5754 aluminum has excellent corrosion resistance, making it suitable for use in marine and other environments that require exposure to moisture and salt water.
- High Strength: It provides good strength while maintaining lightweight mass, making it suitable for structural and load-bearing applications.
- Weldability: 5754 aluminum can be easily welded using a variety of methods, which is critical for applications that require welding to join components.
- Formability: While not as formable as other aluminum alloys like 3003, it can still be formed and shaped for a variety of applications.
- Machinability: It has good machinability and can be used for precision machining and manufacturing.
Aluminium 5754 Mechanical Properties
| Temper State | Ultimate Tensile Strength (UTS) |
|---|---|
| 5754 O Aluminum Coil | 190 MPa |
| 5754 H22 Aluminum Coil | 240 MPa |
| 5754 H32 Aluminum Coil | 250 MPa |
| 5754 H111 Aluminum Coil | 230 MPa |
| 5754 H114 Aluminum Coil | 260 MPa |
| 5754 H112 Aluminum Coil | 270 MPa |
| Temper State | Yield Strength |
|---|---|
| 5754 O Aluminum Coil | 80 MPa |
| 5754 H22 Aluminum Coil | 160 MPa |
| 5754 H32 Aluminum Coil | 180 MPa |
| 5754 H111 Aluminum Coil | 140 MPa |
| 5754 H114 Aluminum Coil | 160 MPa |
| 5754 H112 Aluminum Coil | 200 MPa |
| Temper State | Elongation |
|---|---|
| 5754 O Aluminum Coil | 24% |
| 5754 H22 Aluminum Coil | 14% |
| 5754 H32 Aluminum Coil | 12% |
| 5754 H111 Aluminum Coil | 18% |
| 5754 H114 Aluminum Coil | 9% |
| 5754 H112 Aluminum Coil | 7% |
5754 Aluminum Coil Applications
Common applications for 5754 aluminum coil include marine components, transportation (such as automotive panels and tank trucks), structural components and construction uses.
5754 Aluminum Coil for Tank Truck Body
The tank truck body made of 5754 aluminum coils can not only meet the requirements of lightweight vehicle body, but also be economical and practical; 5754 aluminum coils have good ductility, so it can greatly improve safety performance and eliminate hidden dangers; at the same time, it has high recyclability. Environmental protection and health.

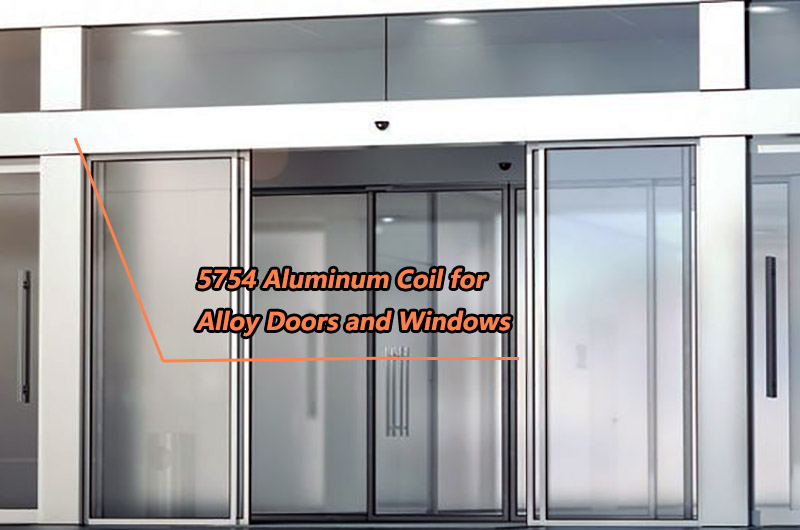

5754 Aluminum Coil for Alloy Doors and Windows
Aluminum alloy is used for door and window processing. It has strong corrosion resistance and generally does not suffer from damage, deformation, aging, pushing, etc. Its performance is stable and reliable.
5754 Aluminum Alloy Sheet and Strip for Auto Parts
The content of the impurity element Mg in the 5754 alloy has a low tendency to crack during welding, good formability, strong plasticity, and easy processing.
In addition, 5083 has the following common applications:
- 5754 O Aluminum Sheet for Auto Body
- 5754 H111 H112 Marine Grade Aluminum Plate
- Marine Grade 5754 Aluminum Hexagonal Bar
- 5754 Marine Grade Aluminum Square Bars
- 5754 Marine Grade Aluminum Round Bar
Chemical Composition of 5754 Aluminum Coil
| Element | Chemical Composition (Percentage) |
|---|---|
| Aluminum (Al) | 97.5% |
| Magnesium (Mg) | 2.6-3.6% |
| Manganese (Mn) | 0.50% |
| Iron (Fe) | 0.40% |
| Silicon (Si) | 0.40% |
| Copper (Cu) | 0.10% |
| Zinc (Zn) | 0.20% |
| Chromium (Cr) | 0.15% |
5754 Aluminum Coil Stock
| Aluminum Coil | Specifications (thickness*width*length) | Unit/ton |
|---|---|---|
| 5754 H22 Aluminum Coil | 0.5*1018*C | 3.317 |
| 5754 H22 Aluminum Coil | 0.5*1018*C | 3.479 |
| 5754 O Aluminum Coil | 0.5*1250*C | 3.049 |
| 5754 O Aluminum Coil | 3*1145*C | 4.569 |
| 5754 H22 Aluminum Coil | 3*1250*C | 3.53 |
| 5754 H111 Aluminum Coil | 0.5*1250*C | 5.389 |
| 5754 H111 Aluminum Coil | 6*1050*C | 7.683 |
| 5754 H111 Aluminum Coil | 6*1050*C | 8.164 |
People Also Searched For Aluminium Alloy 5754
5754 aluminum, aw 5754, al 5754, aw 5754 h111, aw 5754 h22, aluminium 5754 h111, al 5754 h111, 5754 aluminum sheet, aluminium 5754 h22, aw 5754 aluminum, 5754 aluminium alloy, 5754 aluminum equivalent, al 5754 h111 mechanical properties, aa5754 aluminium, 5754 aluminum properties, alloy 5754, aw 5754 h114, aluminium aw 5754, 5754 aluminum plate, al 5754 mechanical properties, al 5754 properties, aluminium 5754 equivalent, aw 5754 h12, aw 5754 h14, aluminium 5754h111, 5754 h12, aluminium 5754 h111 properties, 5754 aluminium plate, aw 5754 almg3, aluminum 5754 h111 properties, aw 5754 properties, 5754 h111 aluminum sheet, 5754 aluminum suppliers
Bend 5083 Aluminum Coil Precautions
As with any other aluminum alloy, bending 5083 aluminum coils requires careful handling and specific precautions to ensure successful, safe bending without damaging the material. Here are some important precautions to keep in mind:
- Bending Radius: Pay attention to the minimum bending radius of 5083 aluminum. Bending a material below its minimum bend radius may cause cracking.
- Tool selection: Use appropriate bending tools, such as a bending brake or press brake designed specifically for aluminum. Tools should be in good condition and properly calibrated to achieve accurate bends.
- Tooling conditions: Ensure that the bending mold and tooling are clean, smooth, and free of burrs or defects. Any defects in the mold may be transferred to the aluminum during the bending process.
- Material Condition: Verify that the 5083 aluminum coil is clean and free of any surface contaminants or defects. Surface defects can affect the quality of the bend.
- Lubrication: Consider using a suitable lubricant or release agent on aluminum surfaces. This reduces friction during bending and helps prevent the metal from getting scratched or worn.
- Temperature: The ideal temperature for bending aluminum is room temperature or slightly above. Avoid bending the material when it's too cold, as aluminum becomes more brittle at low temperatures.
- Bending Speed: Avoid bending too quickly, especially when making sharp turns. Slow and controlled bending helps prevent cracking and ensures a more even bend.
- Bend direction: The bend direction relative to the aluminum grain direction affects the material's properties. It is usually best to bend perpendicular to the grain direction to increase strength and crack resistance.
- Support: Ensure that the aluminum coil is properly supported during the bending process to prevent the material from deforming and experiencing excessive stress. Proper support helps maintain the shape and integrity of the coil.
- Safety gear: When handling metal materials, always wear safety glasses and gloves to protect against potential sharp edges or metal fragments.
- Testing: It is best to perform test bends on scrap 5083 aluminum coils, especially when using unfamiliar equipment or processes. This allows you to adjust settings and techniques before bending the actual workpiece.
By following these precautions and best practices, you can bend 5083 aluminum coil safely and efficiently to meet your project requirements while minimizing the risk of material damage or defects.
