6063 aluminum is a popular alloy in the 6xxx series of aluminum alloys. It is mainly used in extrusion and construction applications due to its excellent combination of mechanical properties and corrosion resistance. While 6063 is more commonly available in extruded form, it is also available in coil form for specific applications.
6063 Aluminum Coil Characteristics
- Strength: 6063 aluminum coil has good strength, especially compared with 1xxx and 3xxx series aluminum alloys. However, it is not as strong as some other 6xxx series alloys (such as 6061).
- Corrosion resistance: It has good corrosion resistance and is suitable for outdoor applications.
- Machinability: 6063 is easy to machine and is a good choice for extrusion.
- Weldability: Welding can be done using various methods, but its strength will be affected by the welding process.
6063 Aluminum Coil Specifications
- Temper: O/T4/T6/T651
- Thickness: 2-8mm
- Width: 1100-2600mm
Other 6063 Aluminum Materials
- 6063 Aluminum Sheet
- 6063 Aluminum Bar
- 6063 Aluminum Profile
- 6063 Aluminum Tube
- 6063 Aluminum Tubular Buspipe
- 6063 Aluminum Busbar
6063 Aluminum Coil Mechanical Properties
| Temper | Ultimate Tensile Strength (MPa) |
|---|---|
| 6063 O aluminum | 124 |
| 6063 T4 aluminum | 220 |
| 6063 T6/T651 aluminum | 260 |
| Temper | Yield Strength (MPa) |
|---|---|
| 6063 O aluminum | 55 |
| 6063 T4 aluminum | 170 |
| 6063 T6/T651 aluminum | 240 |
| Temper | Elongation (%) |
|---|---|
| 6063 O aluminum | 25 |
| 6063 T4 aluminum | 12 |
| 6063 T6/T651 aluminum | 8 |

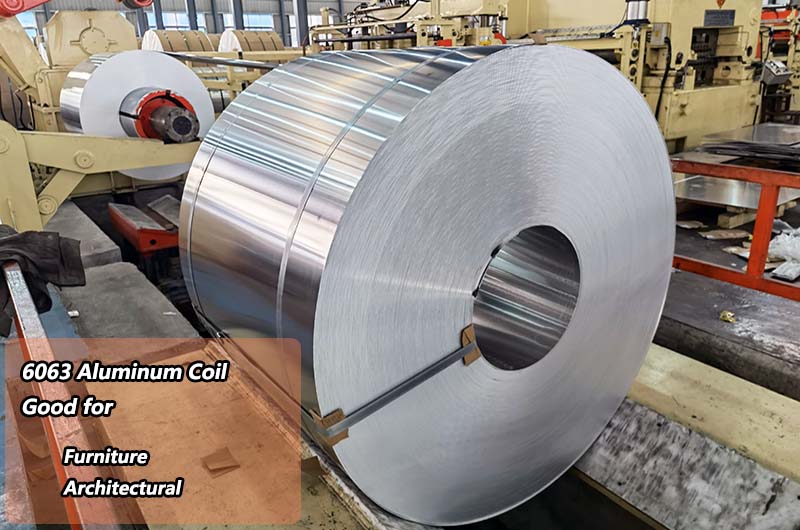

What is 6063 Aluminum Coil Good for?
- Piping and Tubing: It's also used for piping and tubing where corrosion resistance and lightweight construction are important.
- Furniture: Due to its lightweight and easy-to-machine properties, 6063 aluminum is used in the manufacture of lightweight furniture, especially in outdoor settings.
- Architectural: 6063 is commonly used for architectural applications such as window frames, door frames, curtain walls, and extruded trim. Its corrosion resistance and ability to be anodized or painted make it ideal for these uses.
In addition, 6063 aluminum is widely used in the production of extruded profiles, such as T-slot aluminum profiles, which are used in manufacturing, construction, and electronics industries.
The following are common applications of 6063 aluminum in other forms
6063 Aluminum Sheet
- 6063 O T4 T6 3C Digital Shell Aluminum Sheet
- 6063 O/T4 Aluminium Sheet for Automotive Body Structural Parts
6063 Aluminum Bar
- 6063 Aerospace Aluminum Bar
- 6063 Aluminum Round Bar
6063 Aluminum Profile
- 6063 T4 T6 T651 Aerospace Aluminum Profile Extrusions
- 6061 6063 T4 T5 T6 Cabinet Handle Aluminum Profile
- 6005A 6061 6063 7005 Aluminum Extruded Profiles for Aluminum Bridges
6063 Aluminum Tube
- 6063 T4 T6 Oil Tanker Aluminum Tube
- 6063 6061 Aluminum Pneumatic Cylinder Tube
- 6063 T5 T6 Extruded Aluminum Tubing
6063 Aluminum Tubular Buspipe
6063 T6 Conductive Aluminum Tubular Buspipe
6063 Aluminum Busbar
6063 T4 Electrical Aluminum Busbar
6063 coil form allows further processing such as rolling, stamping or extrusion, depending on your specific requirements. Be sure to check with the supplier for exact specifications and dimensions that suit your needs.
